Creating the ultimate commuter bike

Riding at 35KM/h with Nexus Alfine 8 and Gates Carbon Drive

Feb. 24, 2018 -

This winter I use a Sensa Cintura bike with a Gates Carbon belt drive as my daily commuter. It's a bike designed to be nice to ride thanks to its sporty lightweight frame. It's also meant to be low on maintenance thanks to the belt drive and Nexus Afline 8 integrated gear hub. After 1800KM in just eight weeks, it was time for some upgrades.

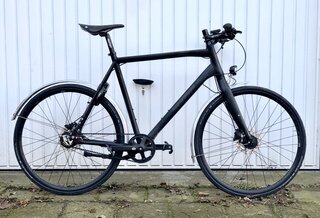

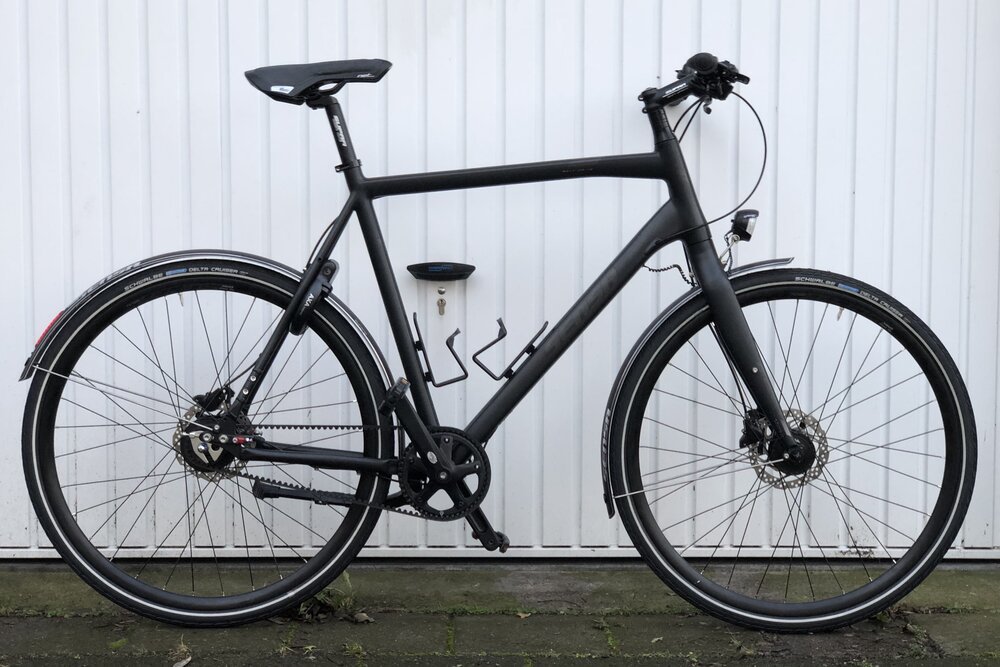

Sensa Cintura - as I got it from the local bike shop
Sensa Cintura - as I got it from the local bike shop

Sensa Cintura Belt-Drive

The Sensa Cintura is a trekking bike with the following specifications:

It's a nice bike with various sporty components combined with maintenance friendly parts such as the integrated gear hub, disc brakes and the belt drive.

I have chosen this bike to be my primary bike during the Dutch winter when my normal road bike stays inside. Previously I used my road bike through the winter, too, but the dirt, combined with road salt (used on icy roads) proved to be killing for my group set... resulting in high wear and damage.

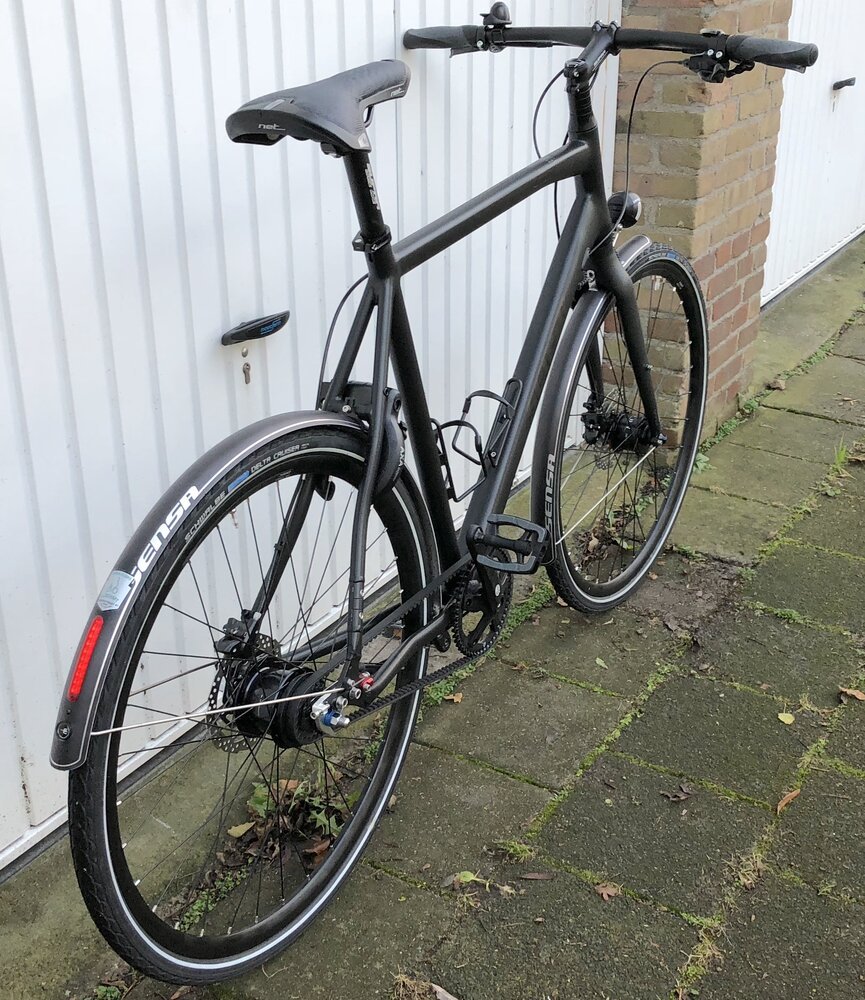

Sensa Cintura from the rear - I didn't like the excessive branding on the fenders
Sensa Cintura from the rear - I didn't like the excessive branding on the fenders

Although I like the style of the bike, I didn't like the excessive branding on the fenders (both from Sensa and my local bike shop). After some careful testing I completely removed the paint from the fenders using a chemical solution (after taking it apart and removing other parts). The result is a much cleaner look:

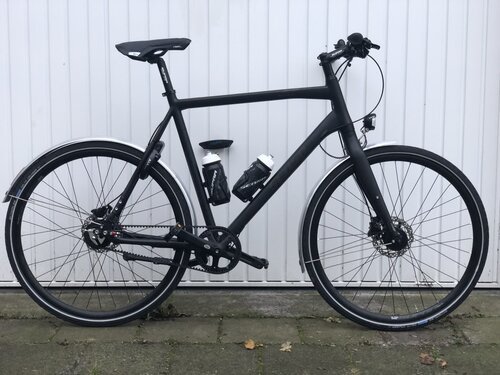

A cleaner look thanks to less obvious branding
A cleaner look thanks to less obvious branding

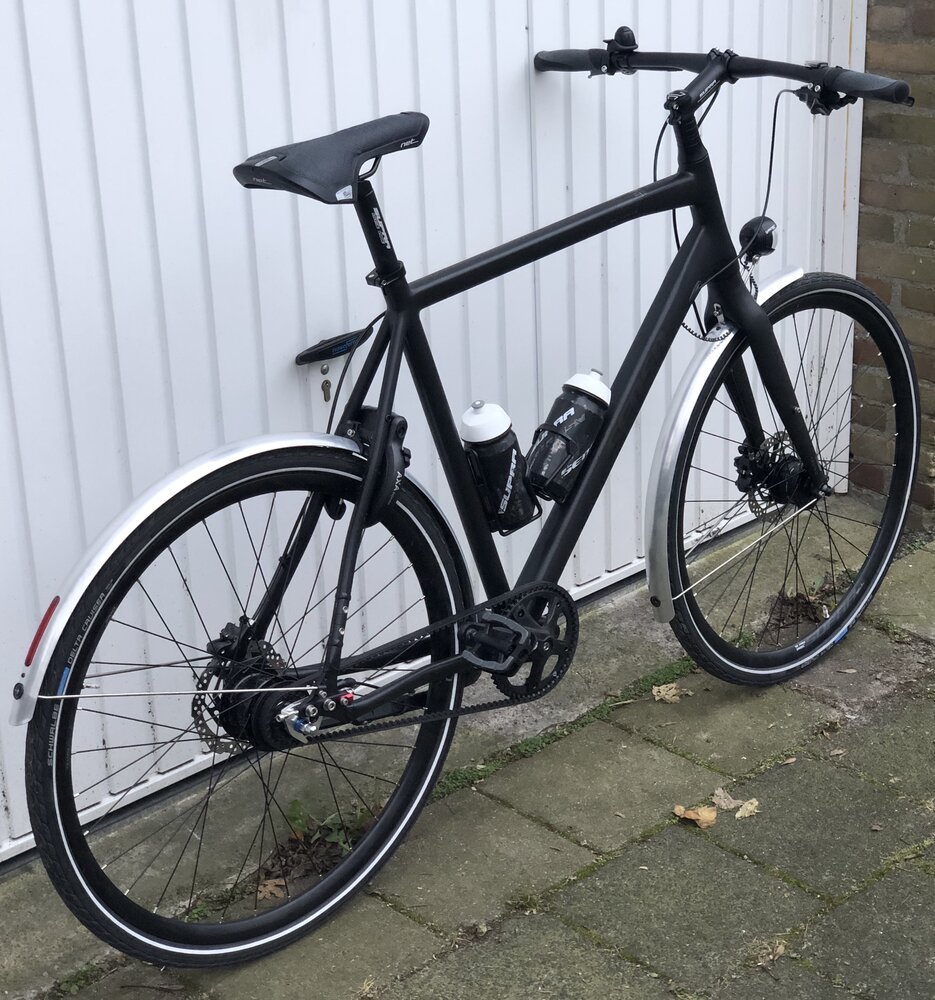

The metal fenders match well with the bike's disc and bolts
The metal fenders match well with the bike's disc and bolts

Dutch Winter

During winter in The Netherlands it's often cold, wet and windy. If the temperature gets anywhere near the freezing point, the Dutch government applies a layer of salt on icy roads. The "salty wet slush" on the road surface is killing for bike components: instantly inducing oxidation and causing excessive wear.

On the bike during Dutch winter
On the bike during Dutch winter

You can't escape these bad conditions if you use your bike for daily commutes. The only thing you can do, is to clean your bike more often. But with Dutch conditions this becomes cumbersome very quickly.

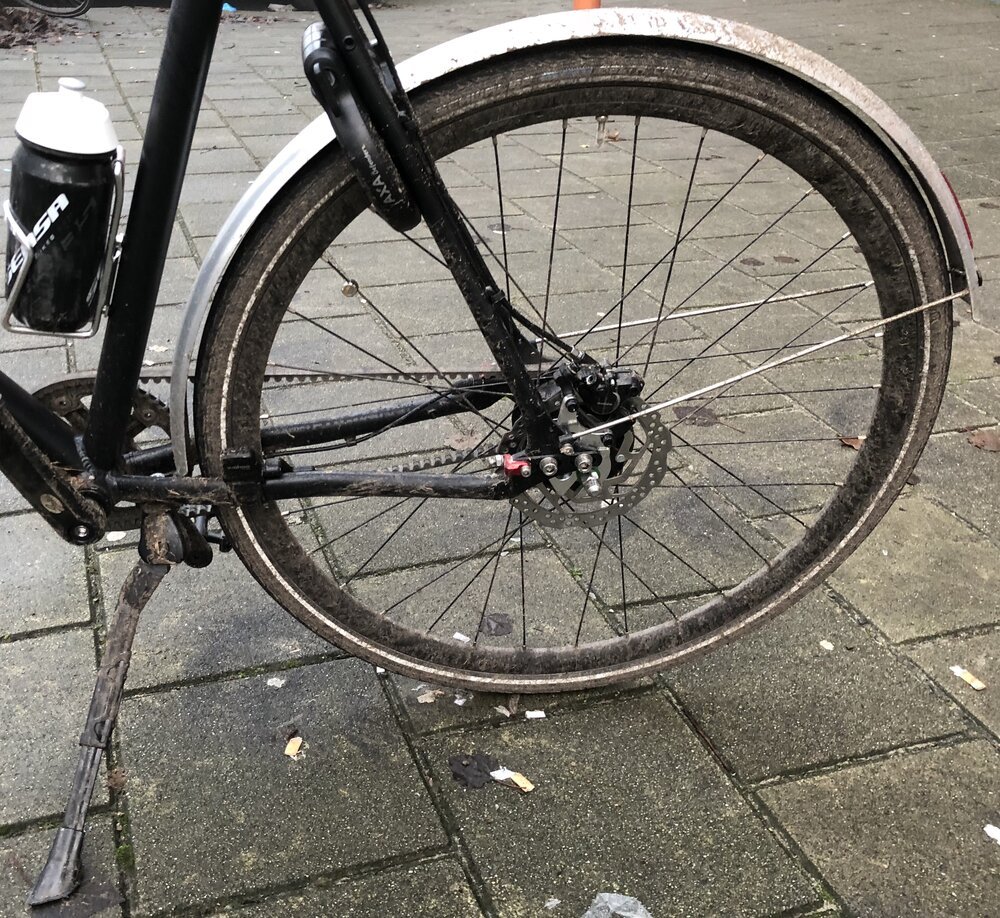

Excessive dirt after a
Excessive dirt after a "normal" commute during winter time

The dirt even finds its way onto the top of my rear fender. You can easily imagine that this kind of dirt is hard on regular bike parts, like a chain, cassette and derailleur.

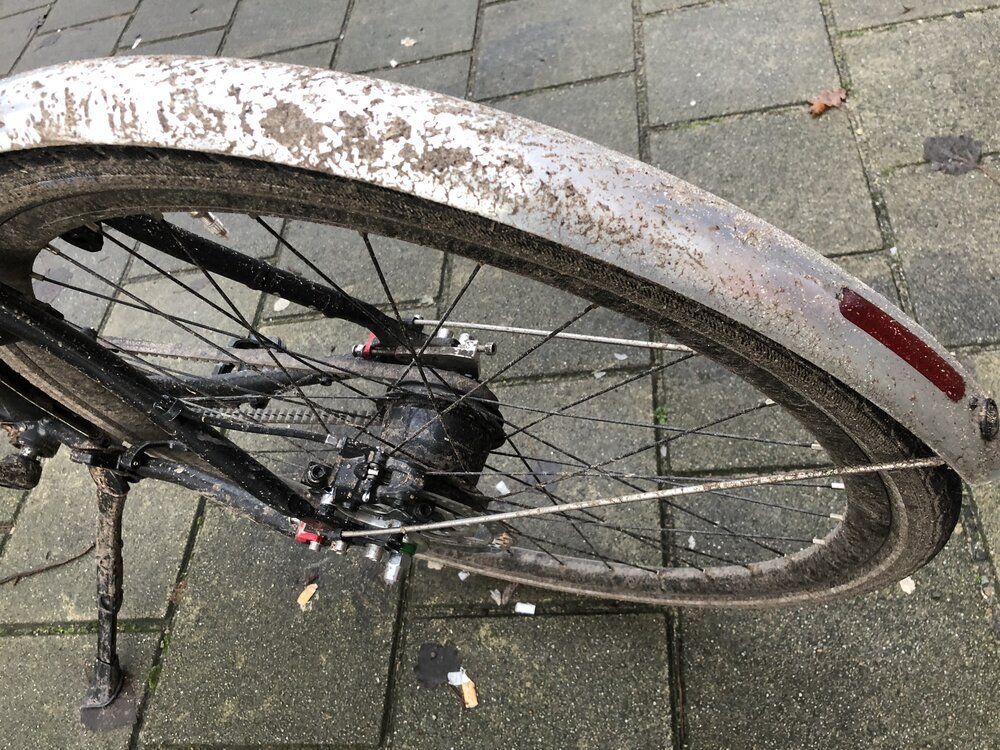

Dirt on top of my rear fender
Dirt on top of my rear fender

Gates Carbon Drive

The Cintura bike is equipped with the Gates Carbon Drive, a belt drive that runs without oil for lubrication. It's dry and therefore attracts less dirt. After a "dirty ride" you can easily rinse it clean with water, without fear for oxidation.

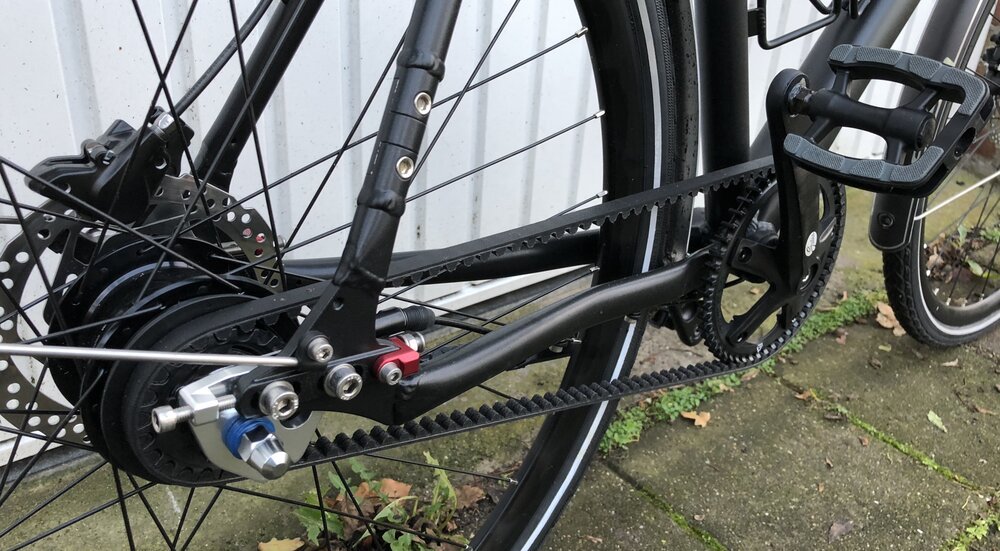

Gates Carbon Drive
Gates Carbon Drive

In theory this is fantastic, but in practice it turns out to be a different story. After just 1800KM I noticed weird sounds coming from my rear sprocket...

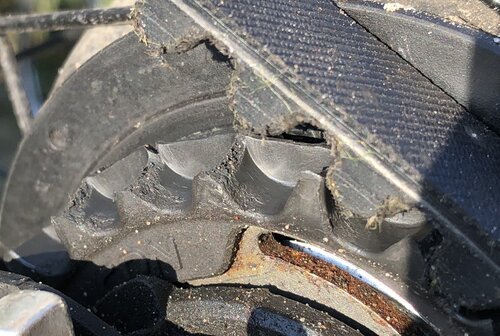

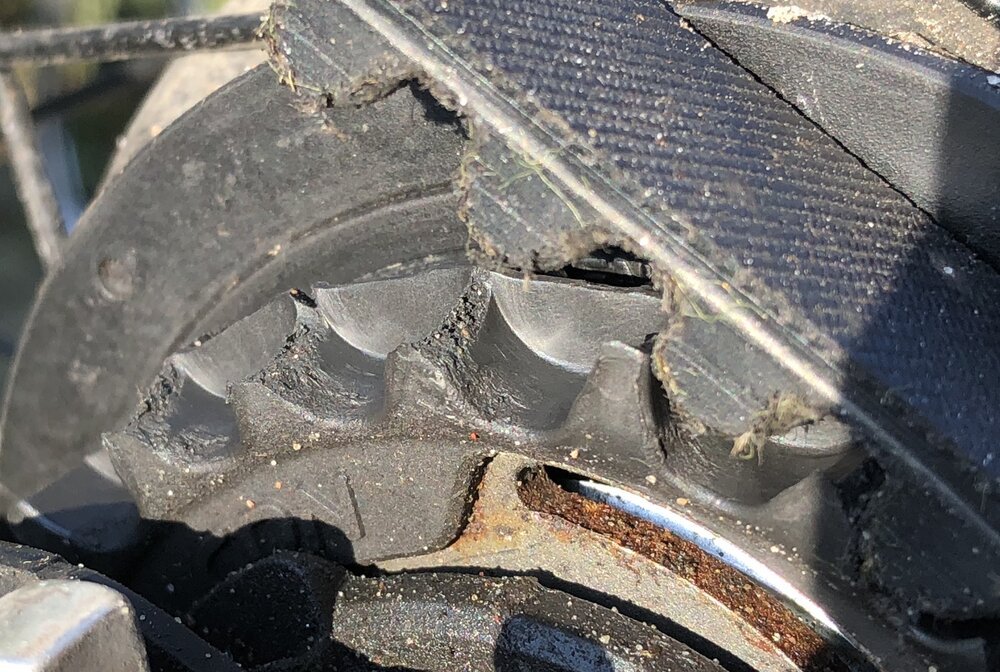

Gates Carbon Drive rear sprocket showing excessive wear after just 1800KM
Gates Carbon Drive rear sprocket showing excessive wear after just 1800KM

The rear sprocket not only became rusty, the polymer teeth are worn badly and a few have broken off completely. This is lacklustre quality and I was greatly disappointed by the Gates Carbon Drive system.

Turns out that the Sensa Cintura is equipped with the Gates "CDN" line belt drive. It's the lower-cost option for casual riders (according to Gates), it's certainly not designed to be intensely used through salty and dirty conditions.

Instead of being dissapointed in either Sensa (for choosing the CDN line) or Gates (for selling it), I decided to take matters in my own hands.

Upgrading Gates CDN to CDX

I was happy to learn that the inferior Gates Carbon Drive CDN shares the same shape and sprocket design as the premium Gates CDX system.

The Gates CDX system is designed for high mileage riding in the harshest conditions. The parts are compatible with each other. I was able to source some original CDX parts from a bike shop in Germany.

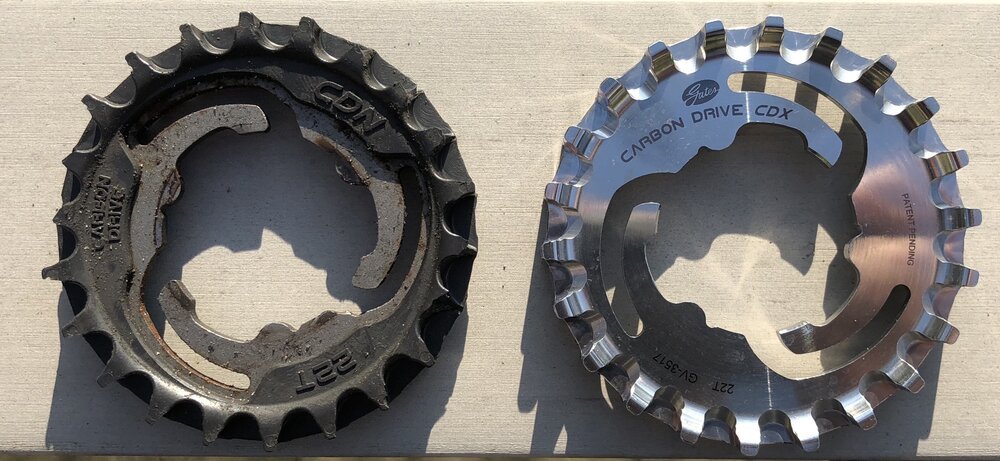

Left the plastic CDN sprocket - if you look closely you'll notice the missing teeth, right the shiny stainless steel CDX sprocket
Left the plastic CDN sprocket - if you look closely you'll notice the missing teeth, right the shiny stainless steel CDX sprocket

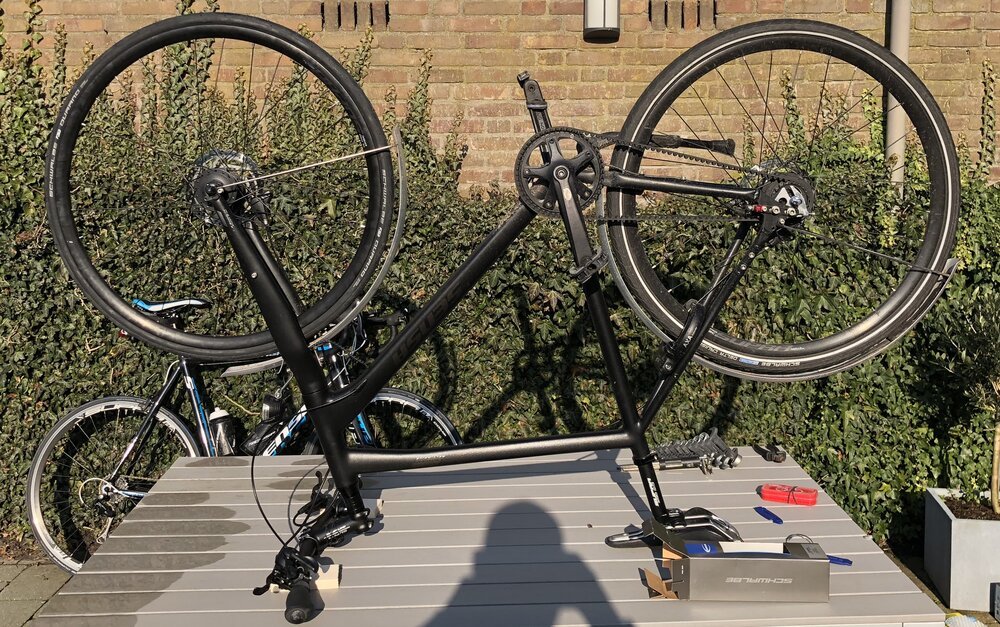

Upgrading the Sensa Cintura
Upgrading the Sensa Cintura

Changing the rear sprocket is not too difficult. There are numerous YouTube videos available depending on the type of rear hub your bike has (mine has Alfine 8).

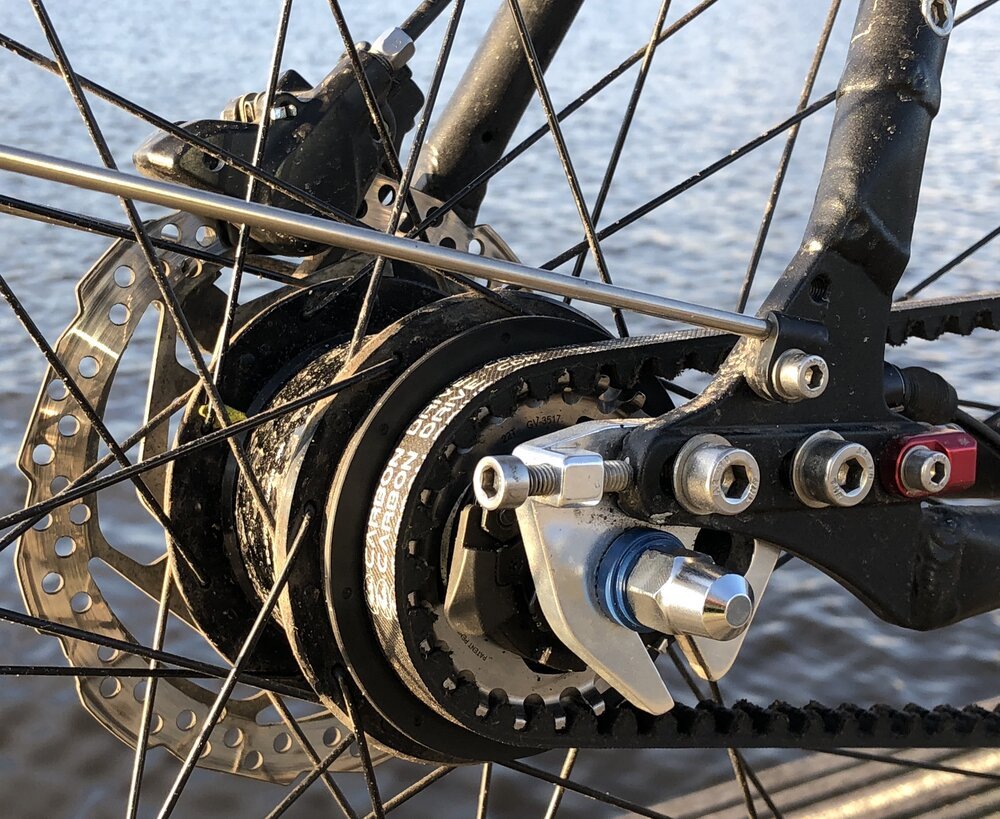

The Gates CDX rear sprocket installed
The Gates CDX rear sprocket installed

Tires

While I was at it, I also changed the bike's tires to something more sporty. Swapping the Schwalbe Delta Cruisers for Duranos. These tough road race tires are much lighter while still providing some profile and durability.

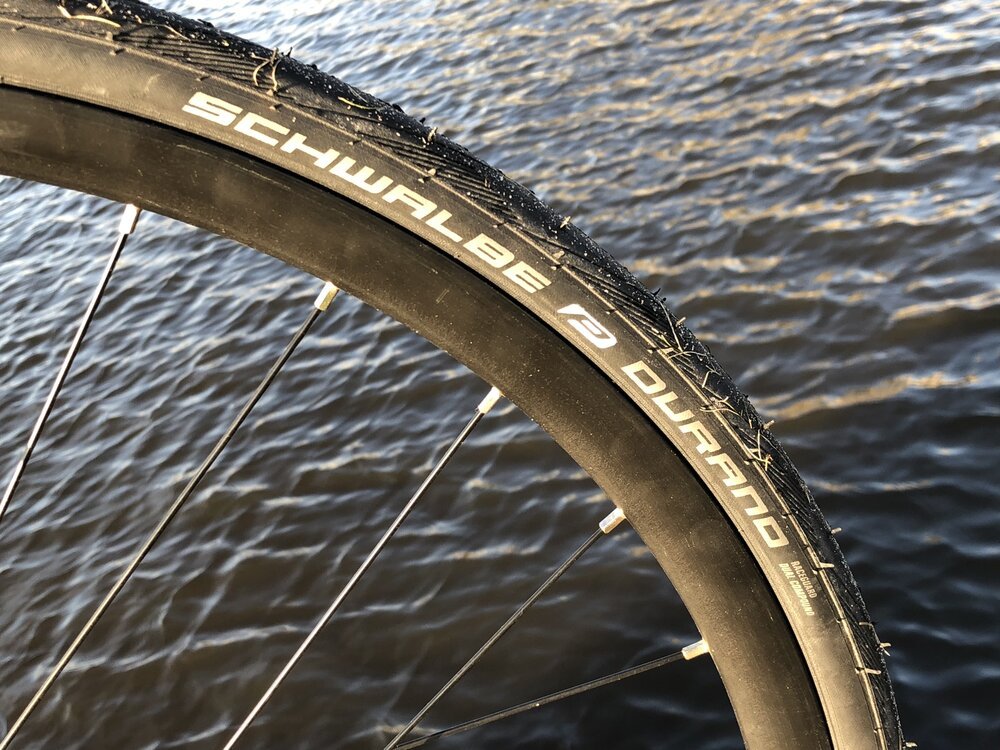

Schwalbe Durano
Schwalbe Durano

Saddle and Pedals

To achieve a sportier ride I installed click pedals (wich allow me to 'pull' in addition to pushing) and a Brooks Cambium C15 saddle that I think fits the bike well.

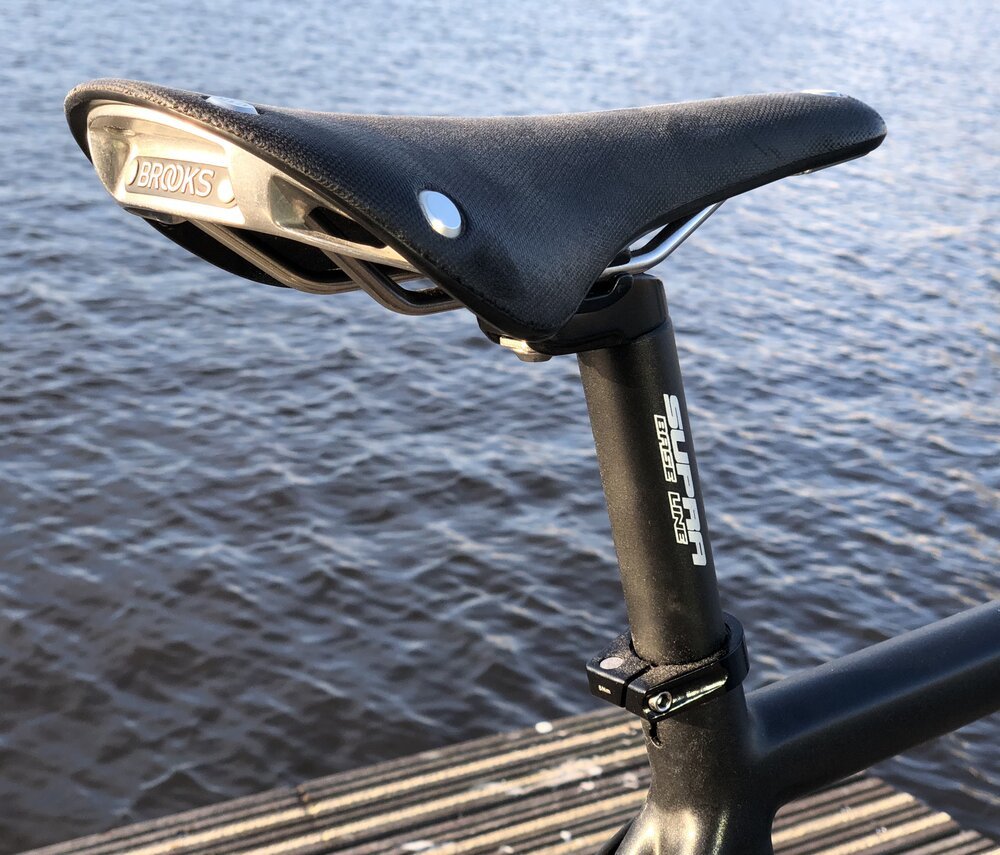

Brooks Cambium C15
Brooks Cambium C15

Shimano Alfine 8

The internal gear hub takes some time to get used to if you normally ride a regular chain/cassette/derailleur group set. The differences between individual gears are slightly bigger.

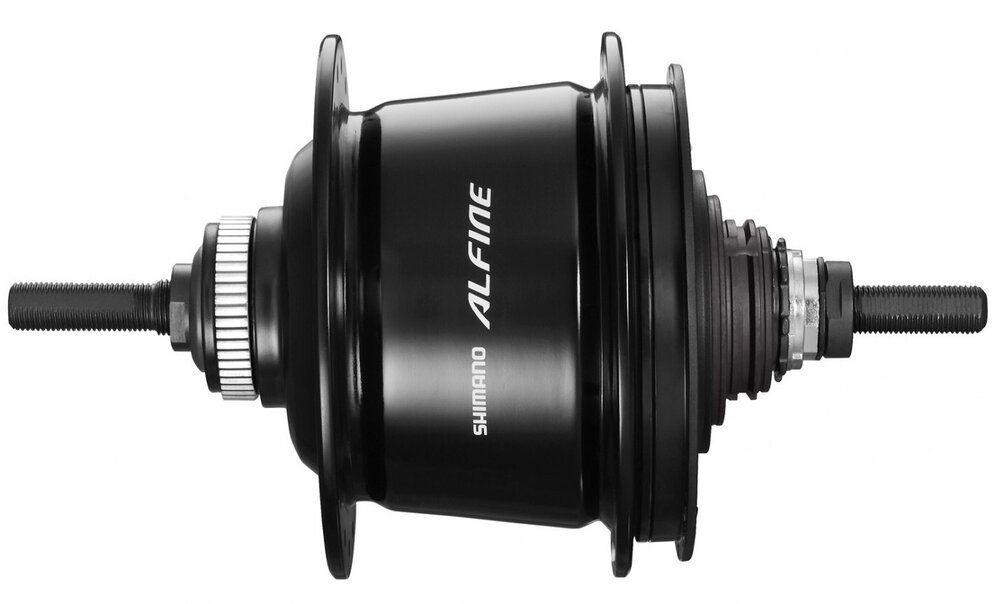

Shimano Alfine 8
Shimano Alfine 8

This causes your cadence to be somewhat higher or lower than you might prefer. But, in a flat country like the Netherlands this is not a problem. I really like the Alfine 8 internal gear hub.

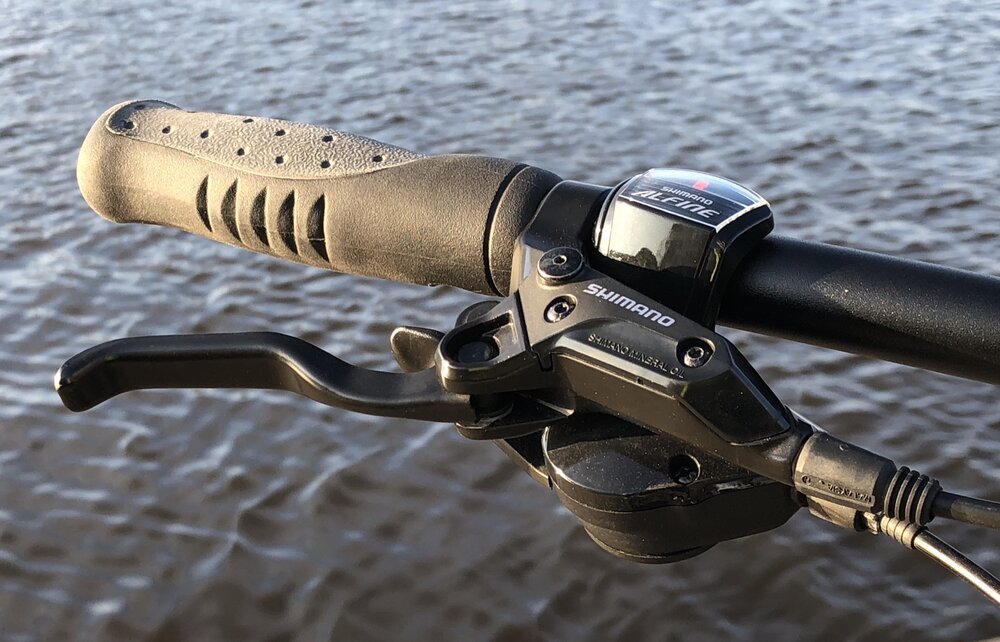

Shimano Alfine 8 trigger shifter
Shimano Alfine 8 trigger shifter

Conclusion

After the upgrades the bike rides even better then before. The nasty sound from the failing CDN drive is gone and thanks to the sporty tires, saddle and pedals I easily ride at 35KM/h.

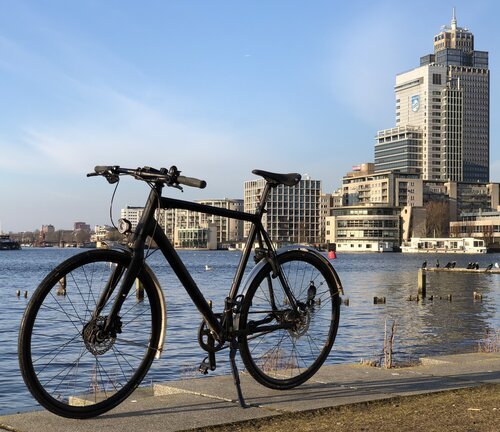

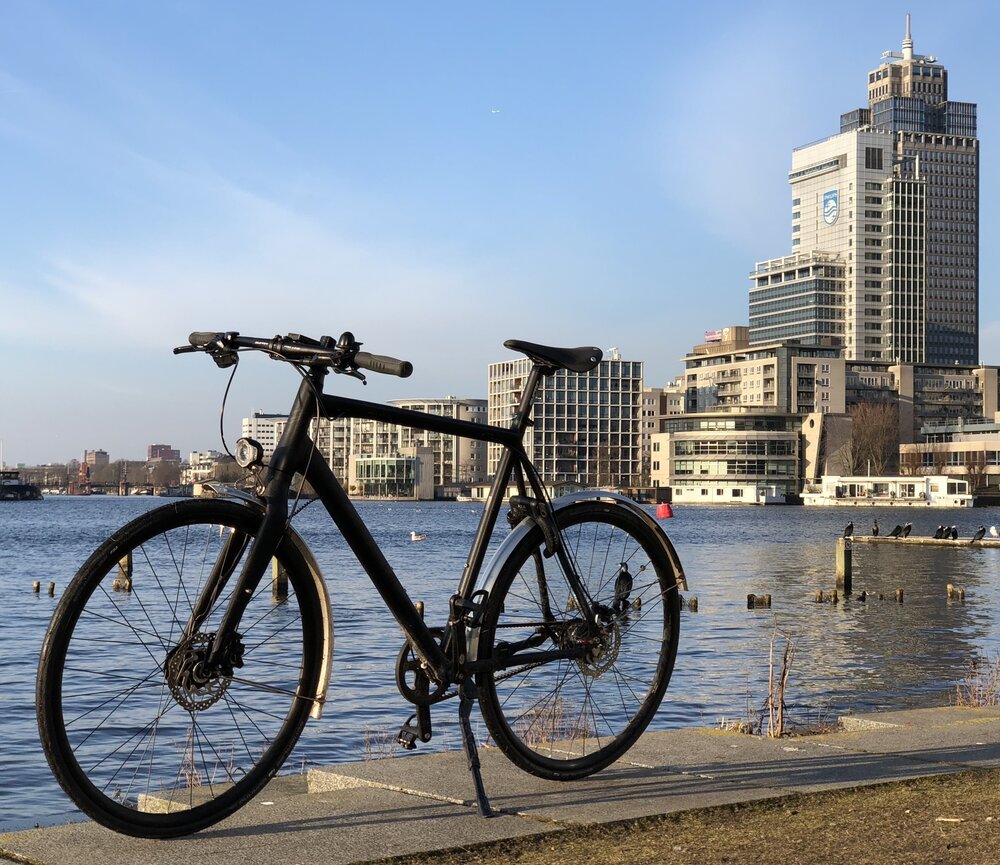

The upgraded Sensa Cintura
The upgraded Sensa Cintura

It's a very nice bike and if there is one thing to take away from this blog post, it's that you sometimes have to make (minor) modifications yourself to make a good product fantastic.

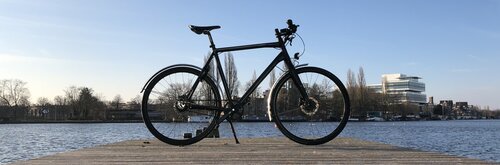

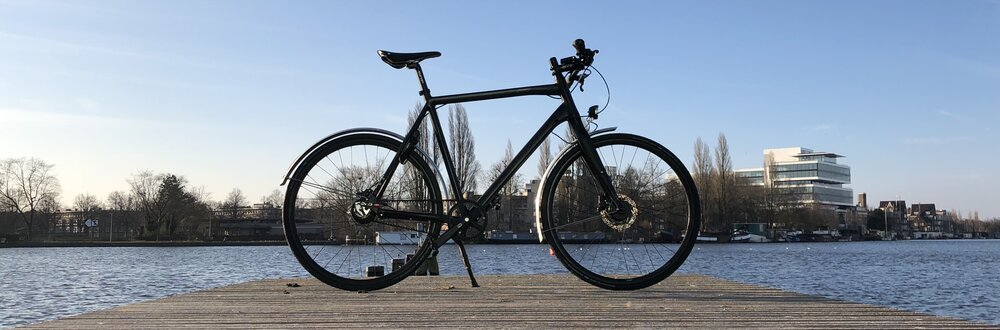

Maybe the ultimate commuter bike?
Maybe the ultimate commuter bike?

Update

Later I removed all the black paint from the bike frame to unveal the raw aluminium underneath it.
