Optical vs chest strap heart rate monitors

Measuring beats per minute using different sensors

July 15, 2019 -

With modern wearables, smartwatches and fitness bands, it has become easy and common to measure your heart rate. There are however fundamental differences in sensor types. Some sensors capture the electrical signal from your heart while others use light to analyse the blood flowing through your vessels. If you're interested in measuring heart rate, it's good to understand these differences.

Measuring your heart rate

If you want to measure your heart rate (HR), you basically have three options:

Optical vs Electrode HR sensors

Both optical and electrode HR sensors use different different signal types to measure the same thing: heart rate. This is a fundamental difference between the sensor types as it greatly affects the sensor's convenience, accuracy and power efficiency.

Electrode HR sensor

In order to be able to capture the heart's electric activity, this sensor needs direct contact with your body, typically through two or more electrode pads. In a hospital they connect up to twelve pads, whereas a typical chest HR-monitor uses two pads placed on your body using a strap. Once it has a signal it works accurately and power efficiently.

Heart rate monitor in hospital uses electrode pads to capture the heart's electric activity
Heart rate monitor in hospital uses electrode pads to capture the heart's electric activity
Conductive pads in the chest strap work in a similar way as the heart rate monitor in hospitals
Conductive pads in the chest strap work in a similar way as the heart rate monitor in hospitals

Optical HR sensor

An optical HR-monitor needs a light emitter (usually green or red LED's) and a photo sensor to analyse light refracting off your flowing blood. This data is analysed and processed into metrics such as heart rate. Because this sensor type requires processing and multiple components, it typically uses more power than a electrode HR-monitor. External light (such as bright sunlight) can interfere with the sensor's accuracy if the sensor is not perfectly snug on your wrist.

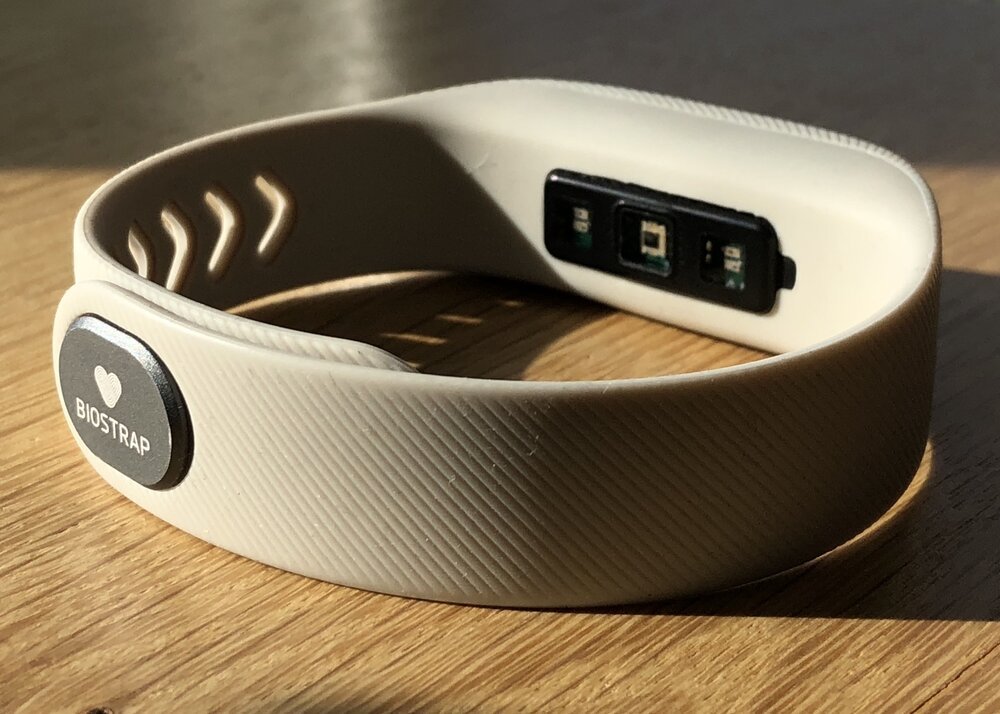

Biostrap features an optical sensor, located at the center, right between two LED's
Biostrap features an optical sensor, located at the center, right between two LED's
Apple Watch has an optical heart rate sensor, cleary visible in the middle of the underside
Apple Watch has an optical heart rate sensor, cleary visible in the middle of the underside

Conclusion

Because of its accuracy the electrode based sensor is commonly used in hospitals and by professional athletes. Its direct electrical connection to your body allows realtime monitoring in a power efficient manner.

The optical sensor type does not require electrical pads or straps to capture your heart's activity. It can operate from a wearable or smartwatch, right from your wrist. This allows it to comfortably take heart rate measurements periodically, useful for long term heart rate monitoring.

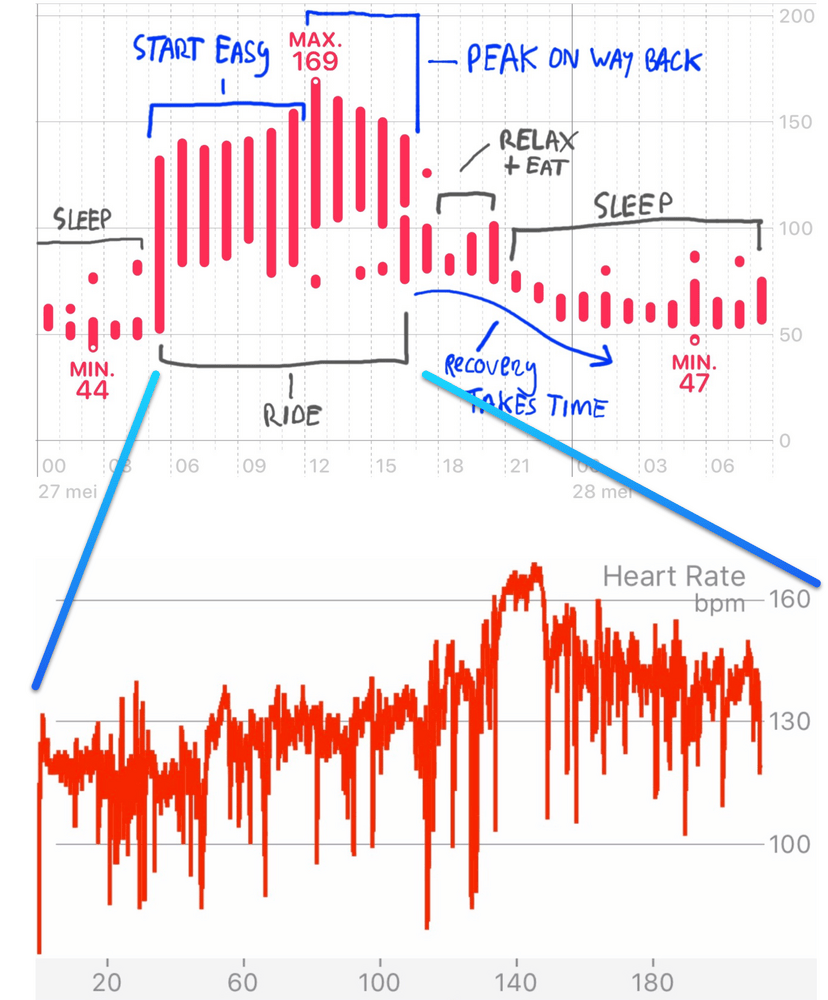

Heart rate data using different sensors, the workout was captured (in detail, bottom graph) with a chest strap while the hours afterwards with an optical sensor
Heart rate data using different sensors, the workout was captured (in detail, bottom graph) with a chest strap while the hours afterwards with an optical sensor

If you combine the two different sensor types, you can get interesting and detailed insights into your heart's activity. Use a directly connected chest strap to capture a workout in detail, while use an optical heart rate monitor (in a wearable or smartwatch) to capture your recovery during the hours after the workout. I did this during an intense ride around the Markermeer earlier this year.

Both optical and electrical heart rate sensors measure your heart's activity. Yet they differ fundamentally because of the different signal they use to count your beats per minute. If you combine them, you'll be able to take advantage of both of them!
