Off the grid: Working on 100% renewable energy

Collecting, storing and using solar electricity to power my phone, computer and wearables

Apr. 30, 2018 -

For the past 10 days I have powered my personal electronic devices (phone, computer, wearables) using nothing but energy collected using a small solar panel. I disconnected all grid-connected chargers. I hoped that by going off the grid, even in such a small way, I would gain insights that enable me to save energy (and money).

Solar Panel

Few weeks ago I dramatically decluttered my office by getting rid of many things I did not use anymore. While going through my stuff, I found a small solar panel, a Gomadic Solar Charger. It fits in a bag so that you can use it on the go, like on your boat, camping, etc.

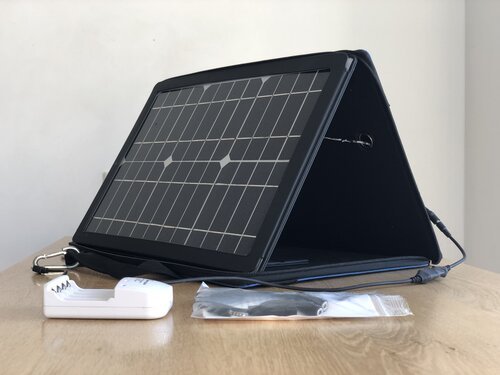

Gomadic portable Solar Charger - 15W - 330 x 305 x 38 mm
Gomadic portable Solar Charger - 15W - 330 x 305 x 38 mm

I got this panel from Kickstarter and used it a few times while camping on a festival and during a rare power outage in Amsterdam. It felt like a missed opportunity that I used it so infrequently. I wondered if I could use this panel to generate enough energy to power my electronic devices.

Personal electronic devices

For this experiment, I expected that I would learn the best if I would put my mostly used devices in the experiment:

The experiment: going off the grid

By taking my electronic devices off the grid I hoped find an answer to the following questions:

Collecting energy

Using a solar panel to collect energy is simple: you just need to make sure it is facing the sun for as long and directly as possible. While the portable solar panel is great, it is not suitable for usage in rain. So, one of the first steps was to find a way for the panel to be (semi)permanently fixed so that I could collect energy regardless of the weather.

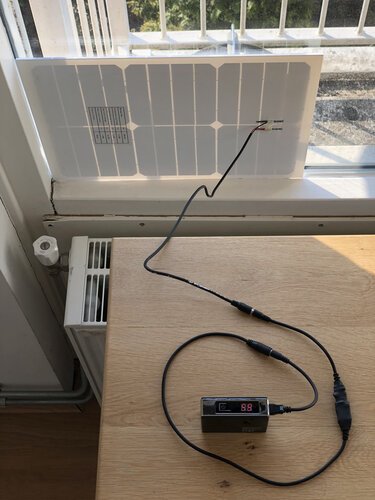

Finding a way to fix the panel in a way that the weather would not harm it
Finding a way to fix the panel in a way that the weather would not harm it

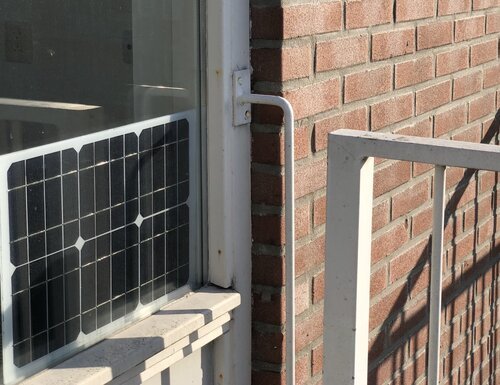

The solar panel directly placed behind the glass
The solar panel directly placed behind the glass

My first idea was to place the panel directly behind the glass. That way, I would not require any special mounts, it would be protected from the weather and its power output could be directly connected to my devices.

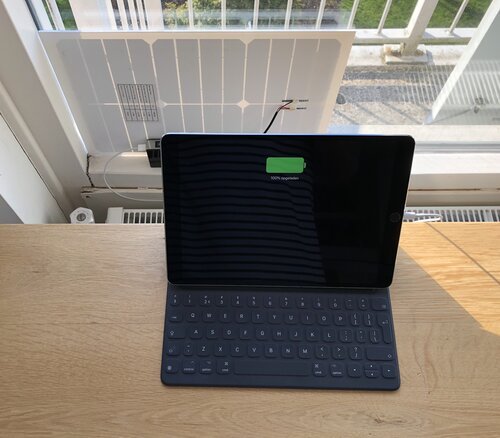

Placed behind glass the panel works, but its performance is not optimal
Placed behind glass the panel works, but its performance is not optimal

This worked, but charging my devices was notably slow. I suspected that both the angle (90º) and the position behind double glass caused performance to be suboptimal.

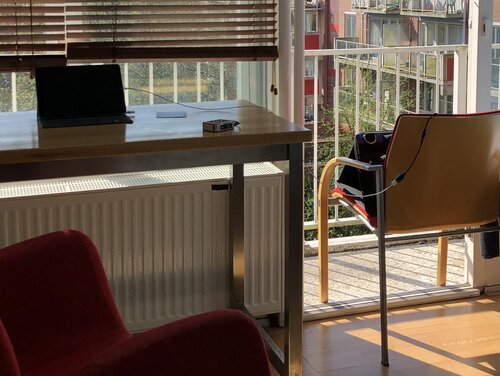

Placing the solar panel is direct sunlight for optimal performance
Placing the solar panel is direct sunlight for optimal performance

By directly placing the panel in sunlight, under an angle of about 40º, I achieved a much higher charging speed on my devices (under the same sunshine). Charging speed went up by 200-300%. If only I could find a way to achieve this optimal position more permanently...

Mounting the solar panel on the balcony

My portable panel did not come with any mounting materials. Luckily I had unused rack mounted server chassis with rail kit laying around. I figured that I could take it apart and make a solar panel mounting system from it.

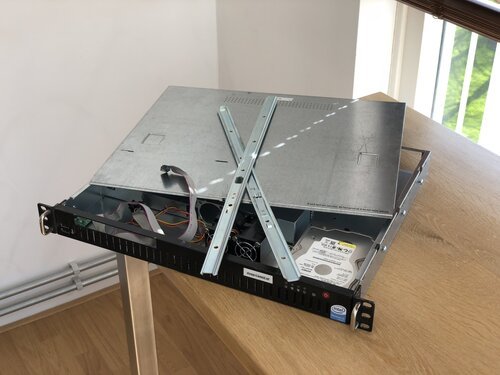

Rack mounted server chassis (1U), with rail kit
Rack mounted server chassis (1U), with rail kit

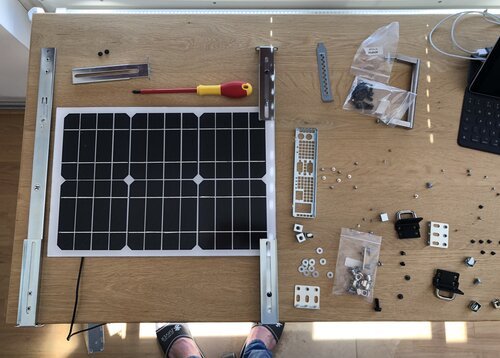

Engineering a solar panel mounting kit
Engineering a solar panel mounting kit

I designed the mounting kit in such a way that it would be possible to refit the panel back in its bag. I clamped the panel using parts from the server, I used some plastic to prevent damaging the glass.

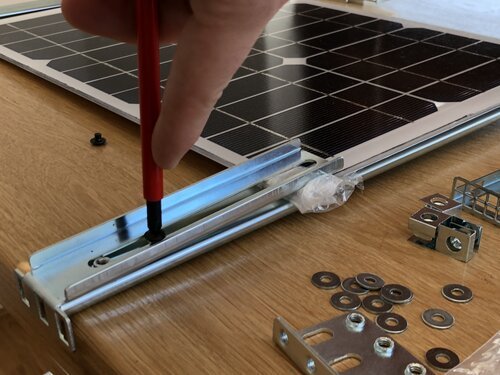

Clamping the solar panel using server parts
Clamping the solar panel using server parts

The panel performs best if it's placed under an angle. Depending on your location on the globe, the season, this angle differs. You can find commonly used angles for your location on the internet. In Amsterdam that is around 30-40º, an angle easily achieved by repurposing parts of the server chassis.

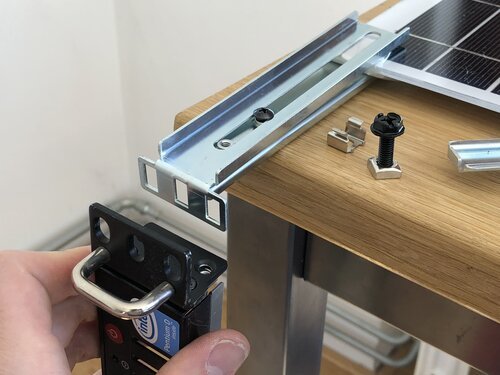

Once the front of a server, now part of the solar panel mounting fixture
Once the front of a server, now part of the solar panel mounting fixture

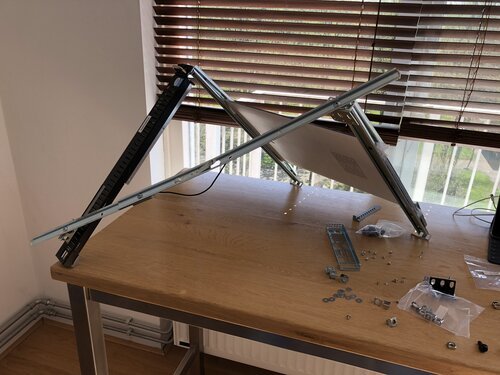

Achieved a nice angle with three legs, suitable for fixture on my balcony
Achieved a nice angle with three legs, suitable for fixture on my balcony

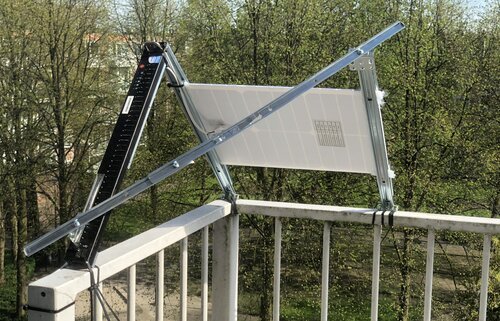

Solar panel fixed on the balcony
Solar panel fixed on the balcony

Storing and distributing energy

Now that the panel is fixed in an optimal and permanent position it collects energy. Obviously I am not always near the solar panel, I need a way to store and distribute the energy collected by the panel.

I use a standard USB power bank to store and distribute the solar energy. I have two power banks that I connect in turn to the panel. It's easy, while one is being charged by the solar panel, I use the other one to power my devices. This way I am able to use electricity whenever and wherever I want.

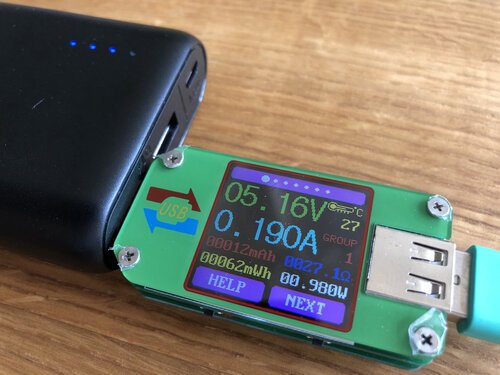

Measuring energy usage with an in-line USB power monitor
Measuring energy usage with an in-line USB power monitor

The panel easily charges a standard USB 5V, 5000mAh power bank in a day. That kind of power bank can charge an iPhone multiple times. I also have a much larger capacity Anker 20100mAh USB power bank that can charge my devices even more times.

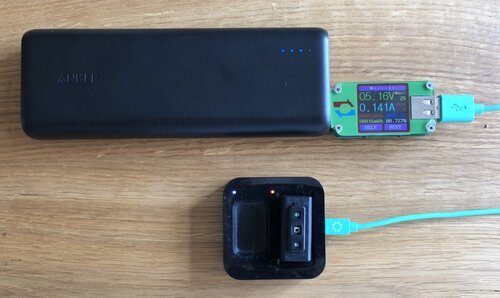

Charging Biostrap using solar energy from the Anker power bank
Charging Biostrap using solar energy from the Anker power bank

Different devices charge at different speeds. It's interesting to see (and understand) the differences in power between your devices. Using an in-line power monitor I learned about the actual power needed to charge my devices.

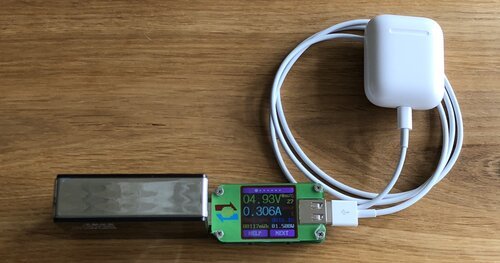

Charging AirPods using solar energy - note the higher amperes compared to the Biostrap
Charging AirPods using solar energy - note the higher amperes compared to the Biostrap

Conclusion - insights gained so far

During the past 10 days I have successfully powered my devices using nothing but the solar energy collected with the small panel mounted on my balcony. It's really possible to take my devices off the grid.

The panel generates enough power to keep my power banks charged, and in turn my devices. Power banks are surprisingly practical as they are mobile and easily connect to multiple devices; one power bank can replace a number of chargers and cables.

The experiment also created awareness that small changes, like turning down the brightness of your phone, limiting the frequency of polling for new emails (during the night), can have great structural effects on your power needs.

This is just a small experiment, but already its changing my perspective on collecting, storing, distributing and using energy.

Great things come from small beginnings, or sic parvis magna in Latin. If this works on a small scale, I will be eager to try this on a larger scale, like my entire office or house. Time will tell!

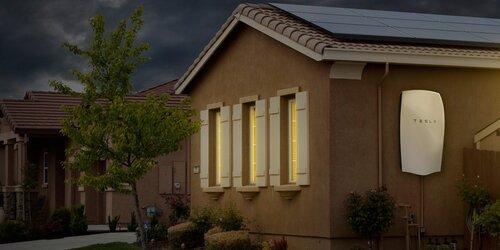

The Tesla PowerWall is a large battery pack that can be used to power an entire house
The Tesla PowerWall is a large battery pack that can be used to power an entire house

Note: this blog post, photos, image editing, writing, uploading and publishing was done entirely using solar energy!
